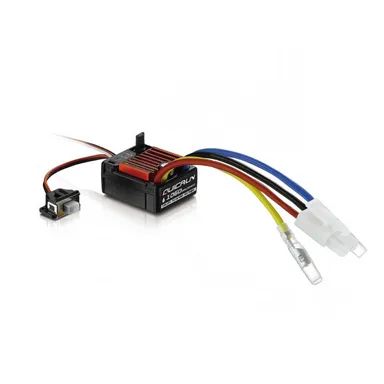

Hobbywing QuicRun 1060 Brushed ESC Tamiya Plug 60A for 1/10

Features

1. Water-proof and dust-proof, suitable for all-weather condition races.
2. Small size with built-in capacitor module.
3. Four running modes to fit various vehicles
   • Fwd/Br/Rev
   • Fwd/Br
   • Fwd/Rev (also called "Crawler Mode")
   • (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
4. Great current endurance capability.
5. Switch mode built-in BEC has powerful output.
6. Automatic throttle range calibration, easy to use.
7. Easy to set the ESC parameters with jumpers.
8. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Technical Specifications



Fwd. Cont. / Peak Current:	60A / 360A
Rev. Cont. / Peak Current:	30A / 180A
Voltage Range:	2-3S Lipo or 5-9 NiMH
Scale:	1/10
Application:	Touring Car, Buggy, Short Course Truck Monster, Truggy, Rock Crawler, Tank
Motor Limit:	2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V 3S Lipo or 9 cells  NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V
BEC Output:	3A / 6V
Plugs:	XT60
Dimensions:	36.5 x 32 x 18mm
Weight:	39g



 The ESC can be programmed by jumpers.

• Running Mode:
  •         Fwd/Br/Rev
  •         Fwd/Br
  •         Fwd/Rev (Crawler)
• Battery Type: Lipo / NiMH
