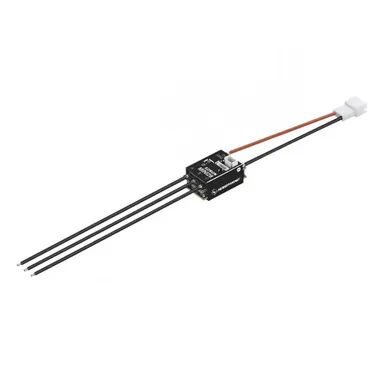

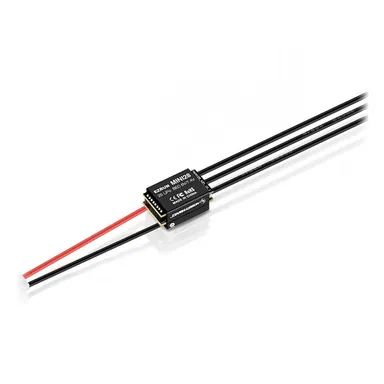

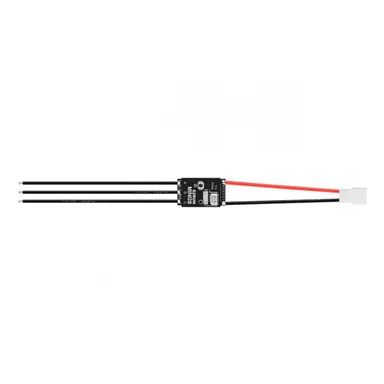

Hobbywing Ezrun MINI28 Brushless 30 Amp, 2s LiPo, BEC 3,5A

Hobbywing Ezrun MINI28 Brushless 30 Amp, 2s LiPo, BEC 3,5A

The Ezrun MINI28 ESC offers everything You need for fully experiencing 1:28 RC care. With over 25 different adjustable parameters, the MINI28 shows that it allows the car to handle numerous situations with ease. So if you like to drive a Mini and use a brushless motor, this Hobbywing ESC is the ideal addition to Your setup.

Adjustable parameters

• General
  Running Mode, max. forward force, max. reverse force, cutoff voltage, ESC thermal protection, motor rotation
• Throttle Control
  Throttle Rate Control, Neutral Range, Initial Throttle Corce, Coat, PWM drive frequencym Softening value, Softening range
• Brake Control
  Drag brake force, max. brake force, brake rate control, brake frequency
• Timing
  Boost timing, boost timing activation, boost start RPM, boost end RPM, turbo timing, turbo delay, turbo increase rate, turbo decrease rate

Features

• Specially developed for use in 1/28 mini racing
• Small and light ESC
• Over 25 different parameters
• Huge improvement in driving experience
• Various built-in protections
• Compatible with LCD G2 programming box and OTA programming module

Technical Specifications

Current (cont./peak)	30A / 80A
Type:	Brushless Sensored
Motor Limit:	1626 Motors
LiPo-/NiMH cells:	2S LiPo
BEC-Output:	6V / 7.4V (adjustable), 3.5A Switch Mode
Dimensions:	22.7x14.2x11.8mm
Weight:	5g (without cable)
Application:	1/28 Mini
Programming Port:	Shared with throttle cable

Delivery

•  Ezrun Mini28 Brushless ESC
