Hobbywing QuicRun 1060 Brushed ESC T-Plug 60A for 1/10

Hobbywing QuicRun 1060 Brushed ESC T-Plug 60A for 1/10

Features

1. Comes with a handy T-Plug

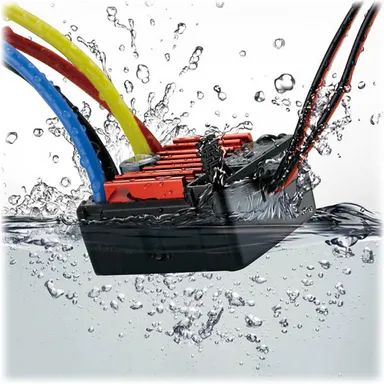

2. Water-proof and dust-proof, suitable for all-weather condition races.
3. Small size with built-in capacitor module.
4. Four running modes to fit various vehicles
   • Fwd/Br/Rev
   • Fwd/Br
   • Fwd/Rev (also called "Crawler Mode")
   • (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
5. Great current endurance capability.
6. Switch mode built-in BEC has powerful output.
7. Automatic throttle range calibration, easy to use.
8. Easy to set the ESC parameters with jumpers.
9. Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Technical Specifications

Fwd. Cont. / Peak Current:	60A / 360A
Rev. Cont. / Peak Current:	30A / 180A
Voltage Range:	2-3S Lipo or 5-9 NiMH
Scale:	1/10
Application:	Touring Car, Buggy, Short Course Truck Monster, Truggy, Rock Crawler, Tank
Motor Limit:	2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V 3S Lipo or 9 cells  NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V
BEC Output:	3A / 6V
Plugs:	T-Plug
Dimensions:	36.5 x 32 x 18mm
Weight:	39g

The ESC can be programmed by jumpers.

• Running Mode:
  •         Fwd/Br/Rev
  •         Fwd/Br
  •         Fwd/Rev (Crawler)
• Battery Type: Lipo / NiMH
