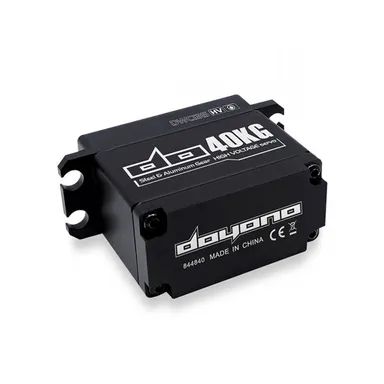

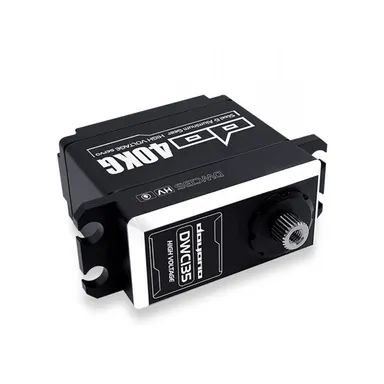

Doyono Coreless Servo HV Waterproof 40.0kg/0.18sec @7.4V

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 40kgcm for coreless motors has a aluminium steel gear and a weatherproof aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure. Features:

• High Voltage Servo
• Gears made of durable aluminium and steel
• Lightweight aluminum housing
• Very weather resistant
• Operating Voltage: 6.0-8.4V
• 2µs dead band, 1520µs neutral point
• 360mm connection wire length

Technical Specifications:

Voltage:	6.0V	7.4V
Speed:	0.21sec	0.18sec
Torque:	33.0kgcm	40.0kgcm
Motor:	Coreless
Gear:	Aluminium / Steel
Bearing:	yes, dual
Max. Travel:	~110° (bei 800: 2200µs)
Quiescent Current:	40mA @6.0V
Rated Current:	0.2A @6.0V
Blocking Current:	2.5A @6.0V
Dimensions:	40.7x20.5x38.9mm
Weight:	84.0g
Output Gear:	25T
