SRTServocomandi · DigitaliCod. DL3017

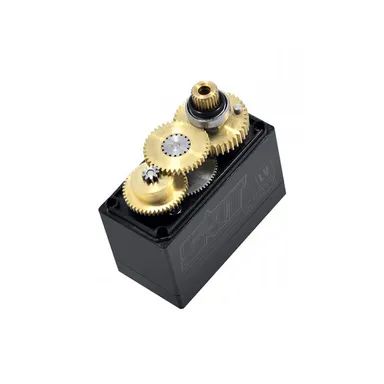

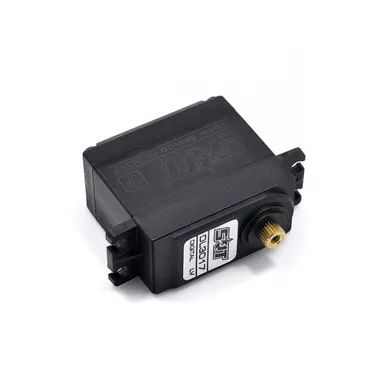

SRT DL3017 17.0kg/0.15sec 6.0V
25,00 €
Ultimi pezzi
IVA inclusa
Nei nostri negozi
- Bologna · Via Bentini 63/c, Bologna · Ritiro quiUltimi pezzi
Esaurito per ora
Dettagli
| Type | Digital |
| Bearing | Dual |
| Motor Type | DC |
| Gear Type | Metal |
| Gear Material | Titanium & Copper |
| Control System | Pulse width control |
| Working Frequence | 1520μs / 330hz |
| Operating Voltage | DC 4.8-6.0V |
| Operating Temperature Range | -10 to + 60 degree |
| Operating Speed | (4.8V): 0.17 sec/60 degrees at no load (6.0V): 0.15 sec/60 degrees at no load |
| Stall Torque | (4.8V): 15.5kg.cm (215.3 oz/in) (6.0V): 17.0kg.cm (236.1 oz/in) |
| Potentiometer Drive | Direct drive |
| Dimensions | 40.7 x 20.5 x 39.5 mm |
| Weight | 63.0g |
| Connector Wire Length | JR 250 mm |
