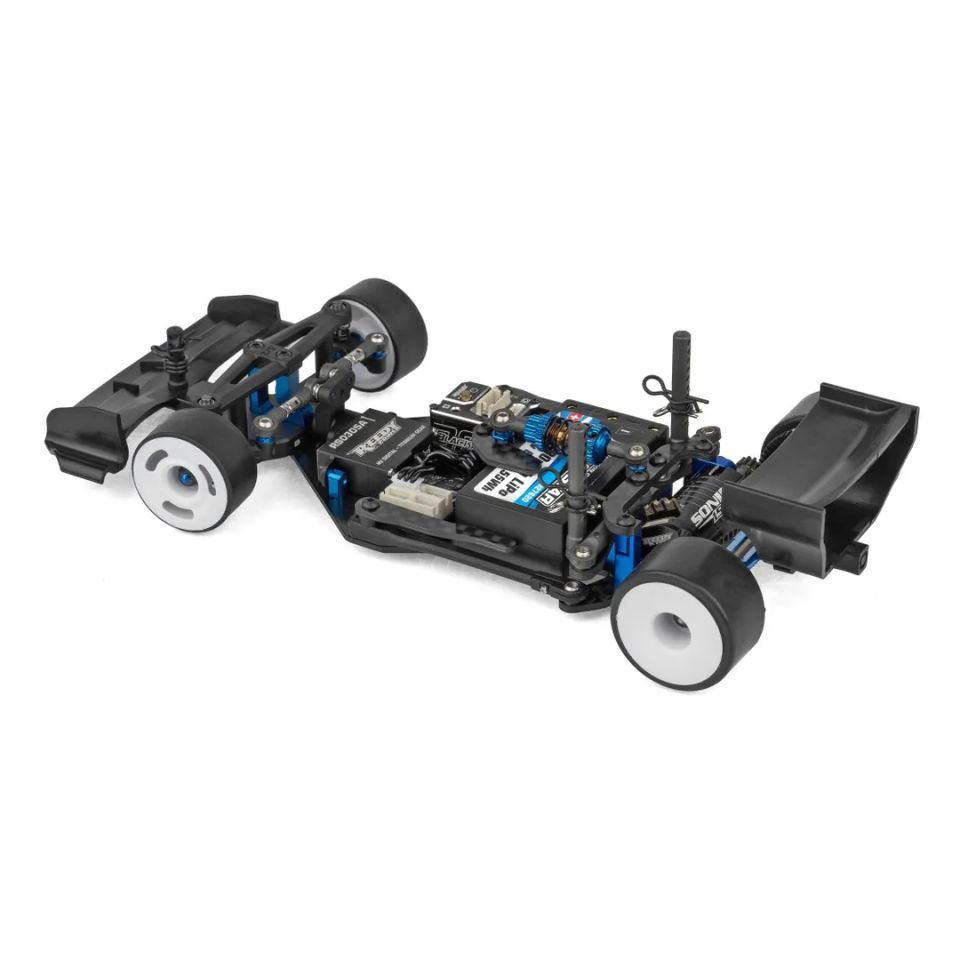

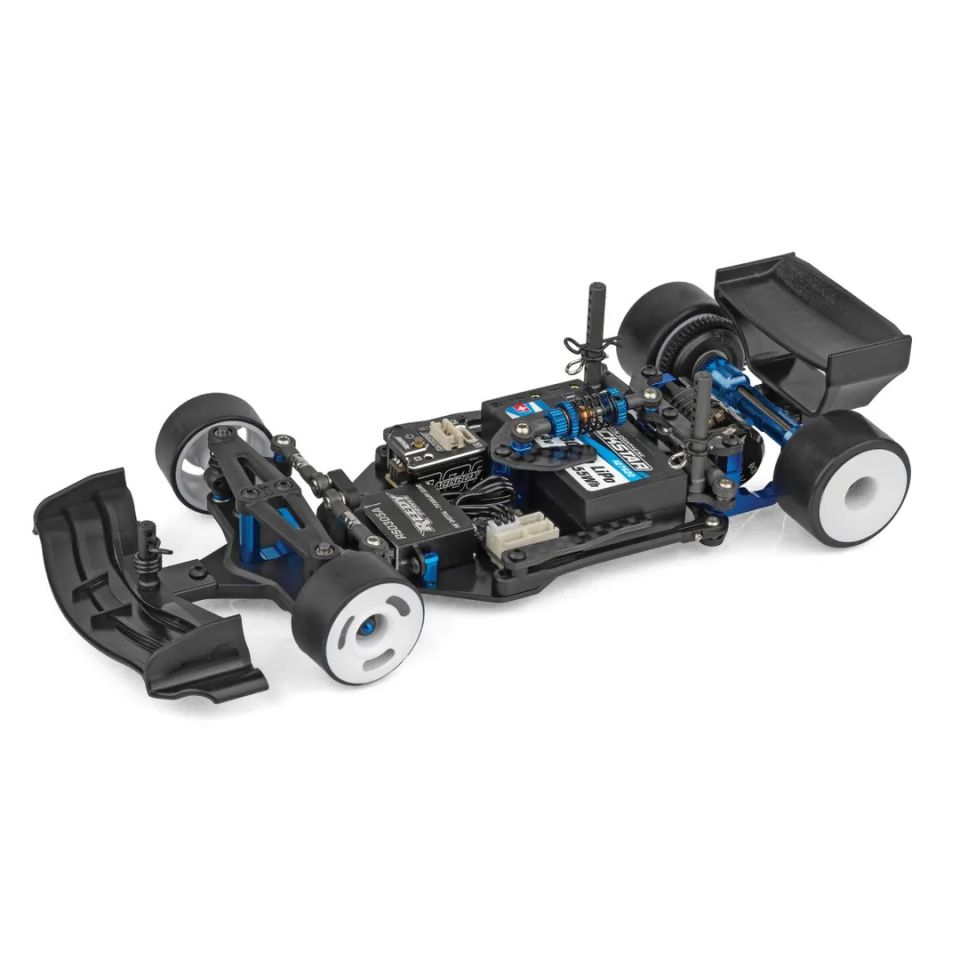

Team Associated RC28F Team Kit

Team Associated RC28F Formula 1:28 2WD Pan Car Kit

AUTHENTIC FORMULA 1 PERFORMANCE IN MICRO SCALE: CUTTING-EDGE TECHNOLOGY FOR TIGHT TRACKS

Formula 1 is considered the pinnacle of global motorsport—defined by cutting-edge technology and spectacular aerodynamics. With the RC28F, Team Associated brings this excitement to 1:28 micro scale, delivering big-time racing performance in an intuitive, easy-to-tune package. Equipped with an F1 polycarbonate body, highly detailed molded plastic wings, and generous space for electronics mounting, this purebred pan car kit provides maximum precision in tight quarters—perfectly tailored to all 1:28 Reedy electronics components.

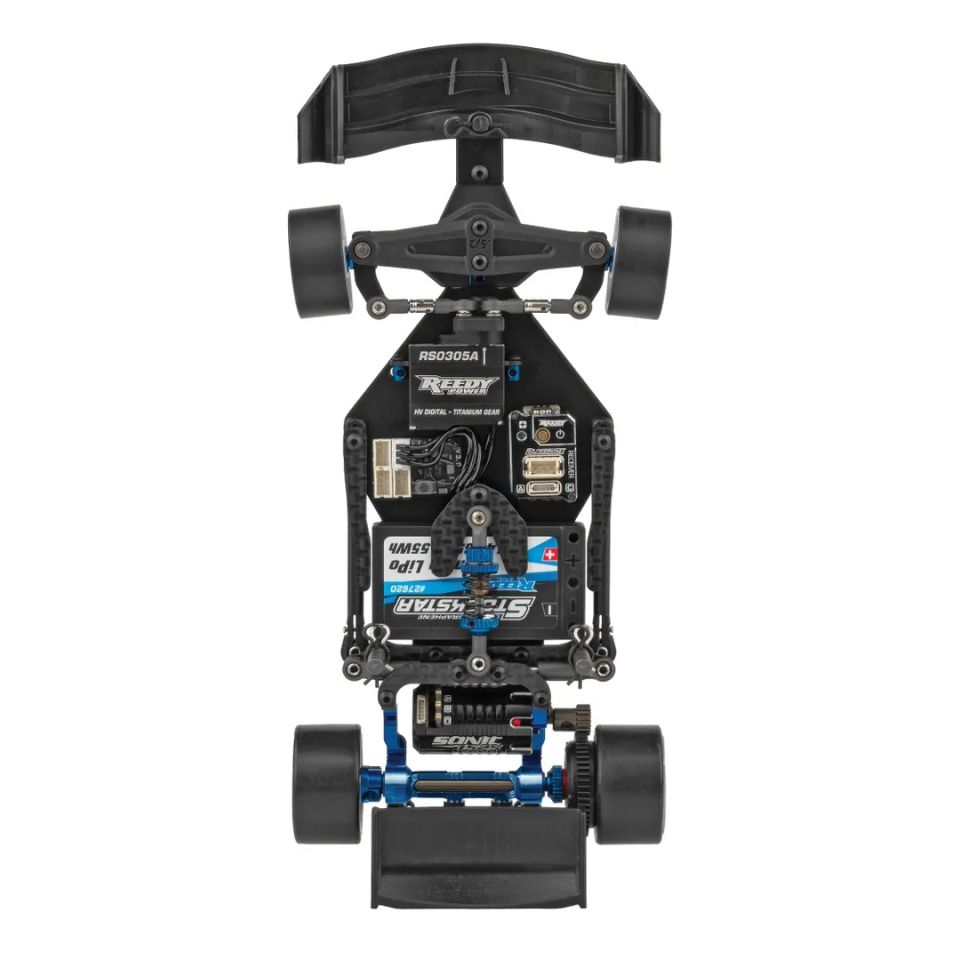

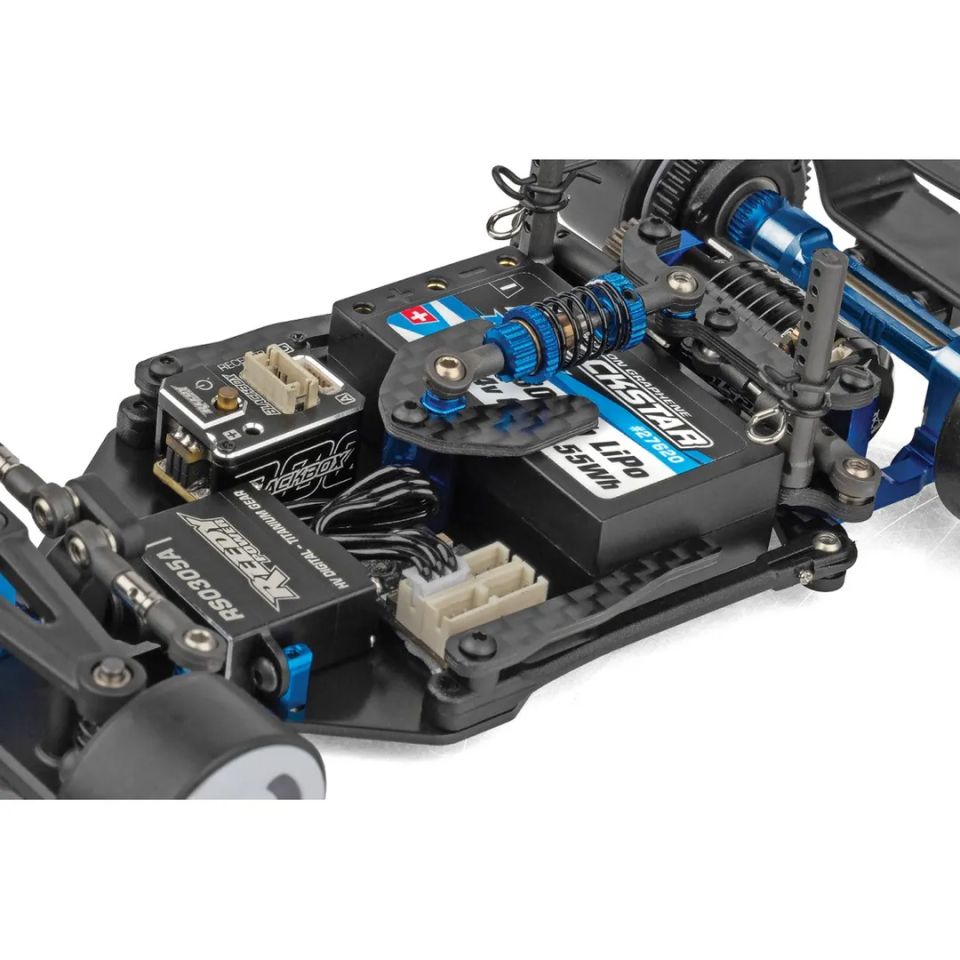

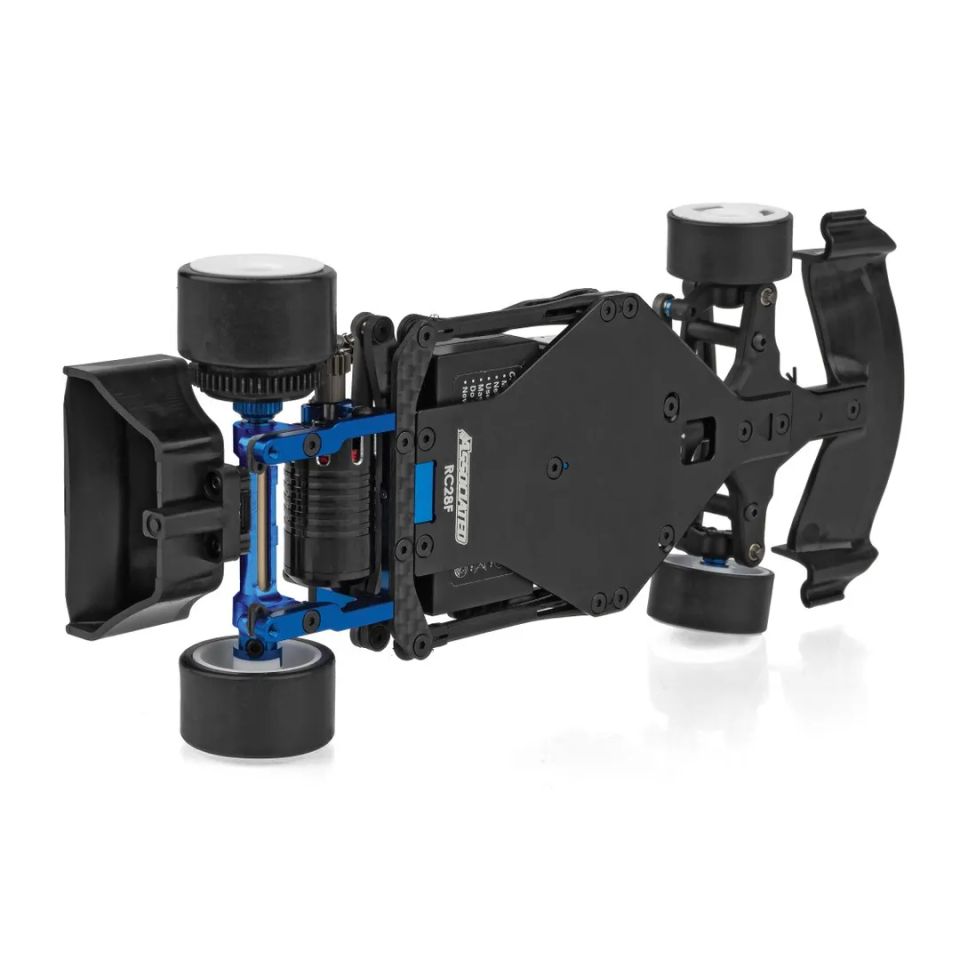

Machined Aluminum Chassis, Torsion Links, and Race-Proven Rear Axle

The foundation of the RC28F is a newly designed, precision-machined aluminum chassis plate with an aluminum center bulkhead. This construction saves substantial weight while easily accommodating wider 24 mm battery packs and an uncluttered electronics layout. In place of conventional side springs, Team Associated employs innovative torsion-style side links, supplied in three stiffness ratings (Soft, Medium, Hard). They streamline chassis setup considerably and offer a smooth response that standard coil springs cannot replicate.

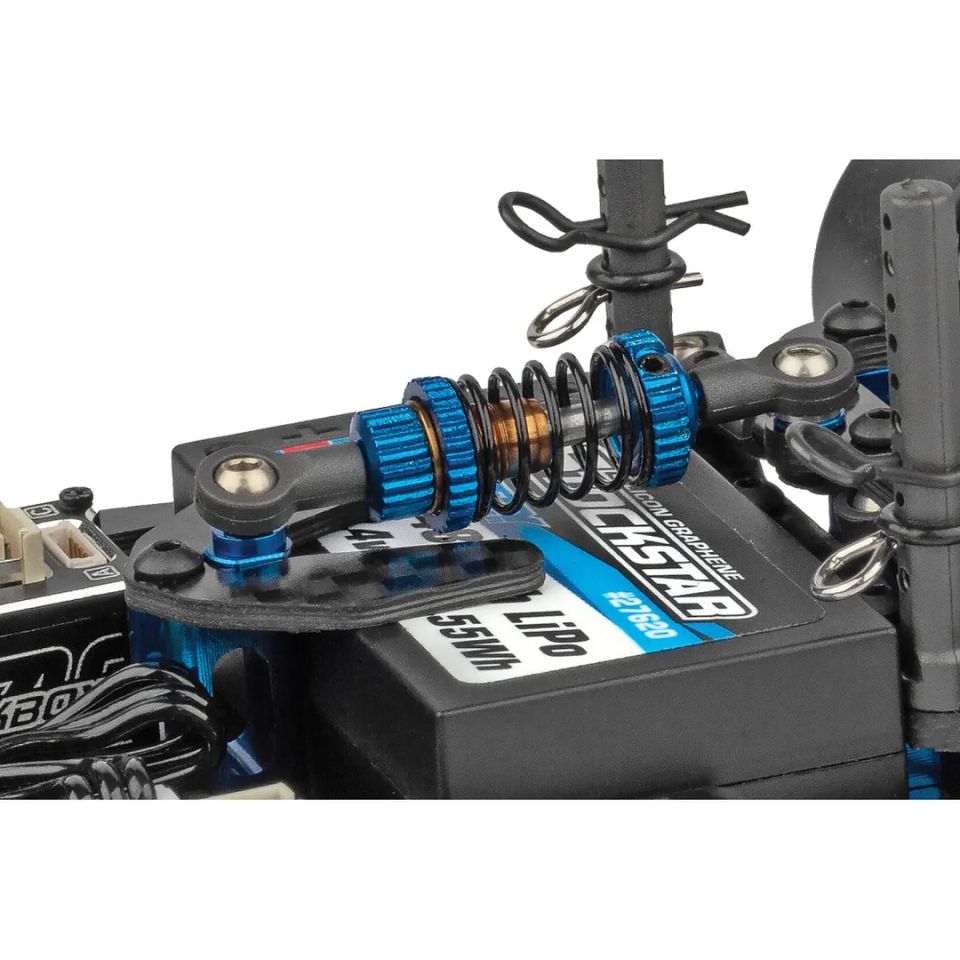

The threaded aluminum center coil-over shock, paired with side damper tubes, allows precise adjustment of chassis pitch, roll characteristics, and droop. The two-piece rear motor pod enables fast ride height changes via Factory Team carbon fiber shims. A durable gear differential is included as standard equipment, with the axle assembly remaining compatible with many popular aftermarket options.

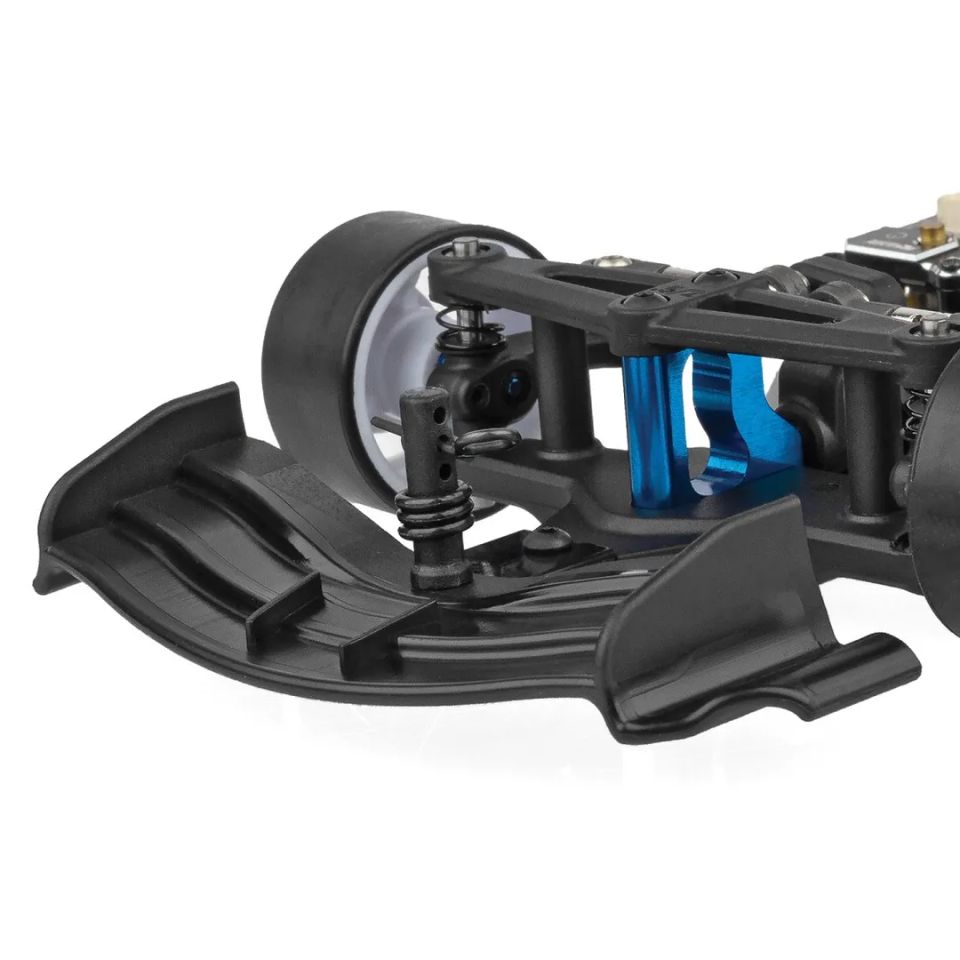

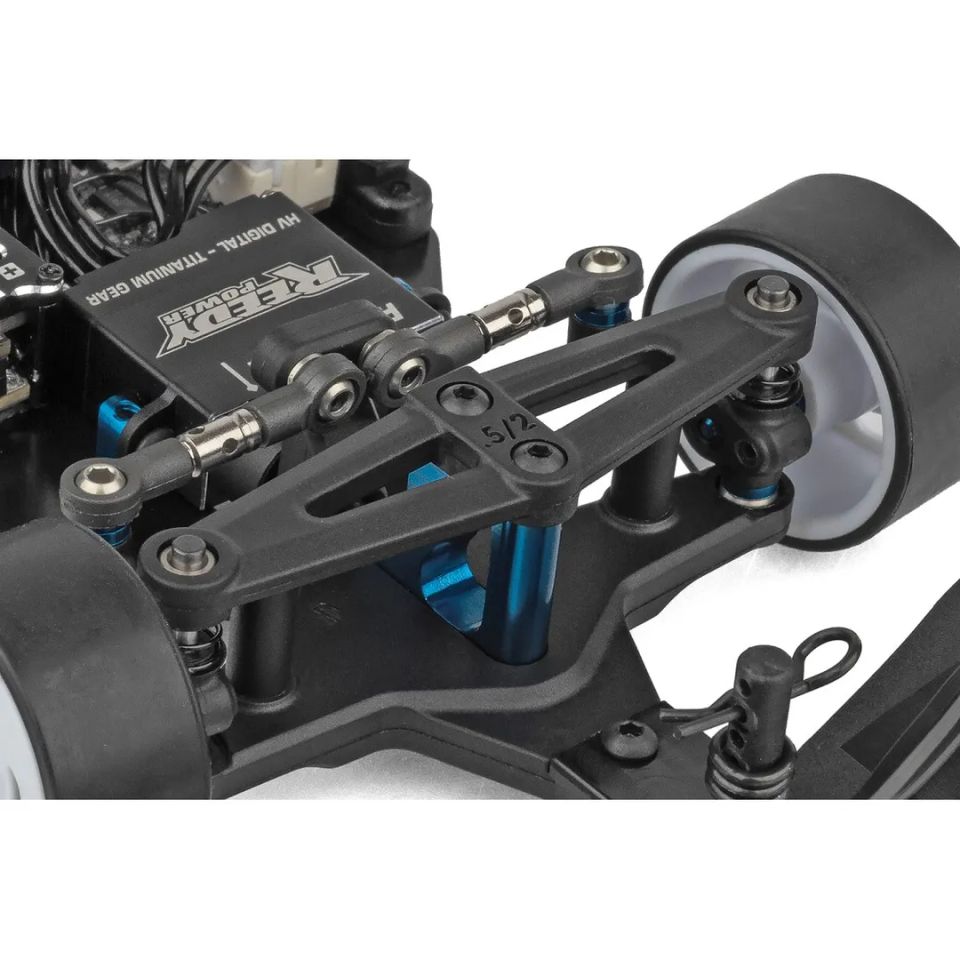

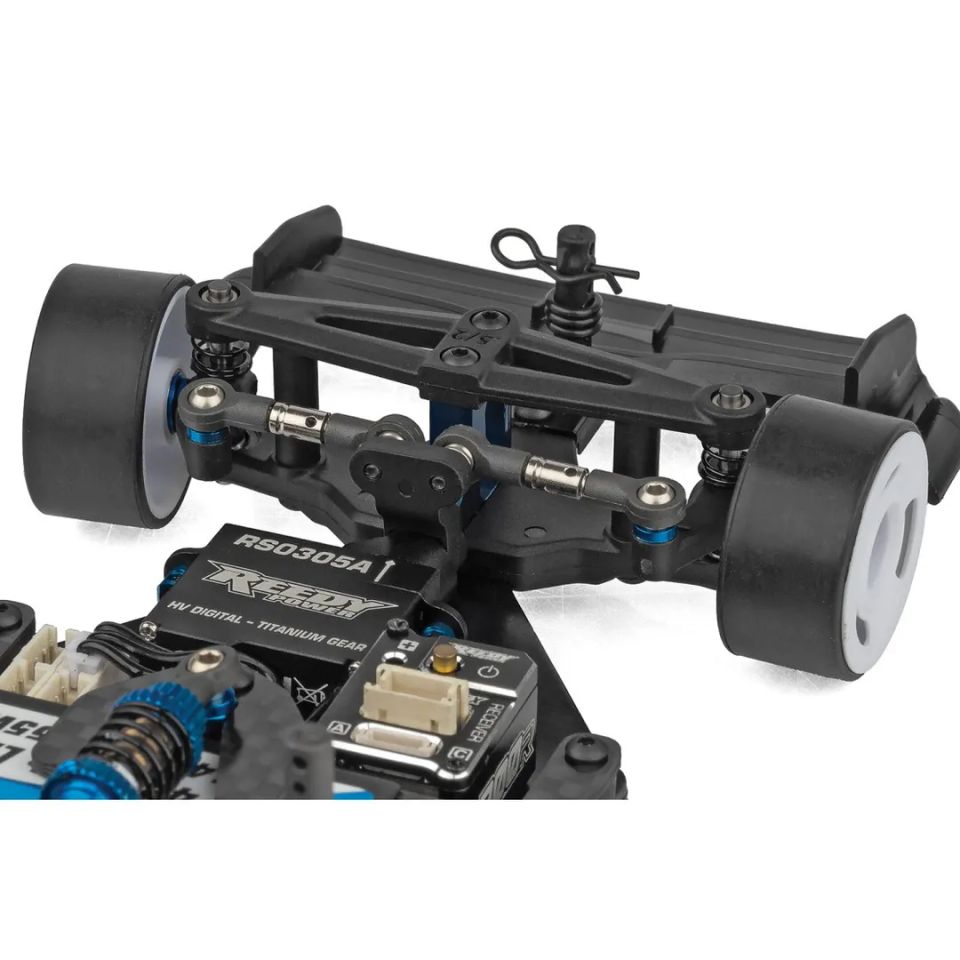

Modular Formula Front Suspension for Pinpoint Turn-In

Up front, a fixed-arm suspension design is utilized. Optional upper control arms allow caster and camber angles to be precisely configured. The refined front bulkhead design ensures rapid arm changes with repeatable fit and alignment every time. In addition, the new white V2 wheels are included, which can be equipped with optional front wheel flanges to custom-tailor steering feel.

Highlights at a Glance

• Machined Aluminum Chassis: Precision-machined chassis plate and center bulkhead deliver low weight, high torsional stiffness, and space for 24 mm battery packs.
• Torsion-Style Side Links: Innovative torsion links replace traditional side springs; three stiffness rates (Soft, Medium, Hard) included for quick trackside setup.
• Threaded Aluminum Center Shock: Fully adjustable for precision tuning of chassis pitch, roll control, and droop.
• Optimized Roll Geometry: Side damper tubes and adjustable roll center inserts located on the rear pod.

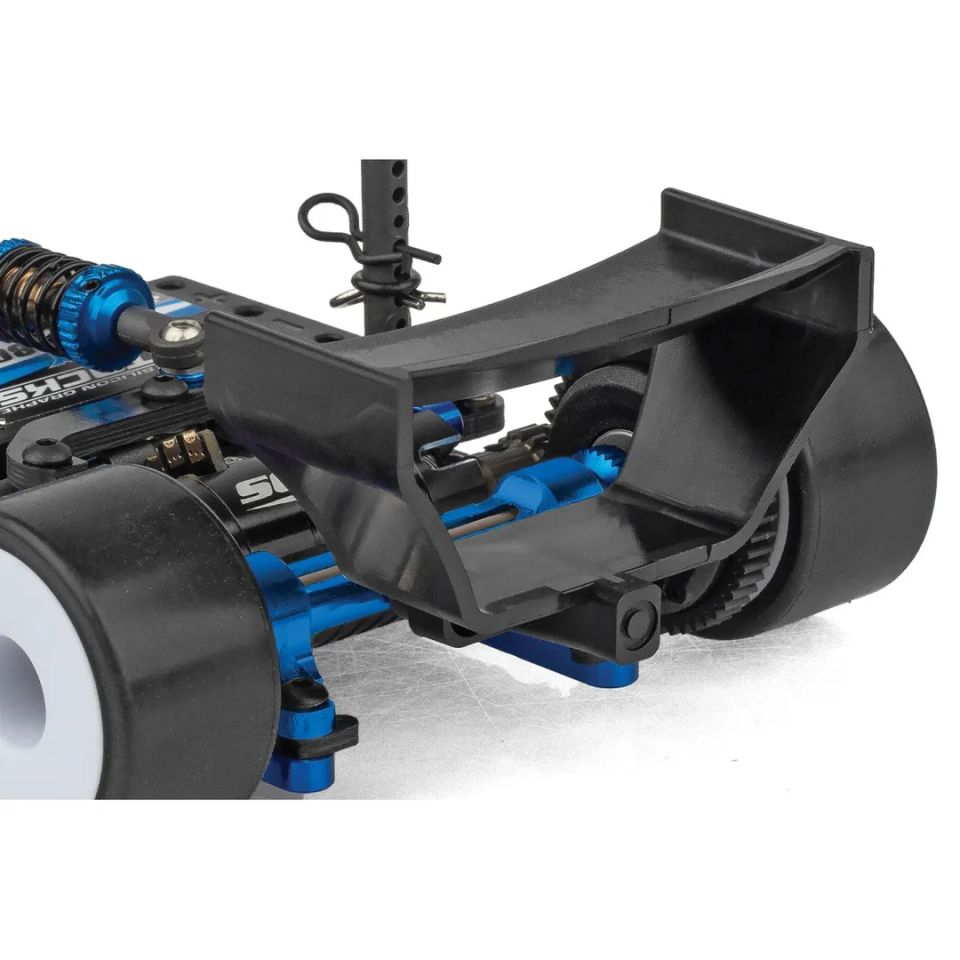

• Two-Piece Rear Pod with Carbon Fiber Shims: Fast and accurate ride height adjustments using Factory Team carbon shims.
• Gear Differential Included: Heavy-duty gear differential installed from the factory, compatible with various aftermarket option parts.
• Formula Front Suspension: Fixed-arm system compatible with optional upper arms for fast camber and caster adjustments.
• Clear Polycarbonate Body: F1 body shell complete with separate molded front and rear wings.
• White V2 Wheels: Includes matching dish wheels, prepped for optional front-axle wheel flanges.
• Reedy Powered Compatibility: Specially optimized to fit all 1:28 Reedy micro electronics components.

Vehicle Specifications

Power Source:	Electric
Terrain:	On-Road
Body Style:	Formula (F1)
Scale Size:	1:28
Assembly Level:	Kit*
Length:	176 mm
Width:	Varies
Wheelbase:	115 mm
Weight:	Varies
Internal Gear Ratio:	Varies
Drive:	2WD

Recommended Accessories

• Micro steering servo: RUDDOG Servos
• 1:28 speed controller: Reedy Blackbox 300R Competition Micro ESC
• 1:28 motor: Reedy Sonic 1525
• Micro Receiver
• Micro LiPo battery (fits up to 24 mm width): RUDDOG Racing RR2 400mAh 100C/50C

Required Accessories (Not Included)

• 1:28 micro electric motor
• Electronic micro speed control (ESC)
• Micro steering servo
• Micro drive battery (micro LiPo up to 24 mm width) and compatible charger
• 2-channel transmitter with compatible micro receiver
• Pinion gear matched to transmission gearing
• Polycarbonate spray paint for the body shell

Operating & Assembly Instructions

• Selecting Torsion Links: For circuits with very high traction, the stiffer variant (Hard) is recommended, whereas on slick carpet or standard surfaces, Soft or Medium links will generate increased mechanical side bite.
• Lubricating Side Tubes: Apply a light coating of friction grease or high-viscosity silicone fluid to the side damper tubes to smooth out turn-in response and stabilize chassis roll.
• Checking Chassis Fasteners: Since screws thread directly into the machined aluminum chassis and center bulkhead, tighten fasteners evenly without overtightening, and use a small dab of threadlock sparingly where needed.

Important Note on Scope of Delivery

Electronic components (motor, ESC, steering servo, receiver, battery), pinion gears, paints, and tools are not included in the scope of delivery. The included body shell is supplied unpainted.

Due to ongoing R&D, photos may not depict the final production kit. The vehicle shown on these pages is equipped with items NOT included in the kit: electronics, tires, and decaling materials.
