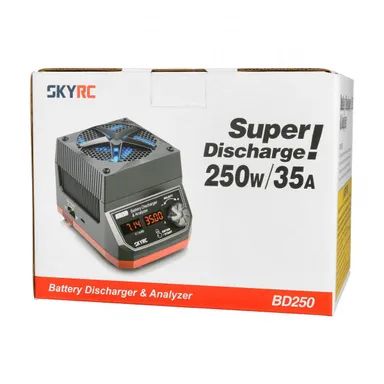

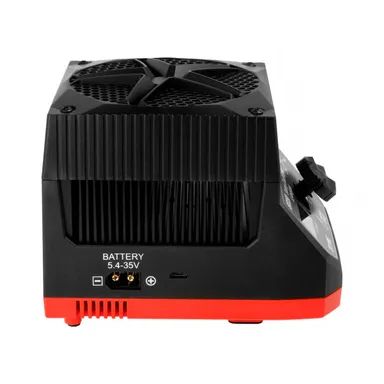

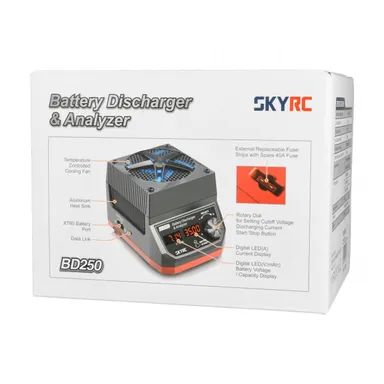

SkyRC Battery Discharger and Analyzer 35A 250W

Features

• Breakthrough cooling system
• Simple and innovative operation

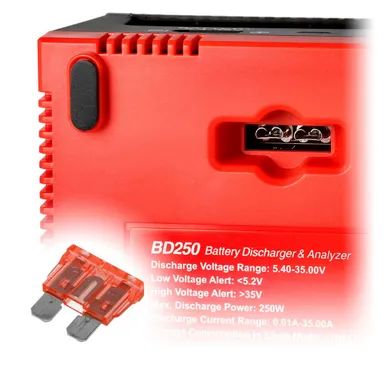

• Reworked safety fuse for an easier replacemen
• 40A replacement fuse inclusive
• Almost any battery compatible for connection
• USB-connection to use for software updates and to connect the discharger to a computer
• Get even more data for performance optimization with the PC software in 30 second-intervals

Technical Specifications:

Accepted Voltage Range:	5.40-35.00V
Low Voltage Alert:	<5.2V
High Voltage Alert:	>35V Max.
Discharge Power:	250W
Discharge Current Range:	0.01-35.00A
No. of Cells:	LiPo: 2-8S, LiHV: 2-8S, NiMH: 6-20 cells
Current Consumption in Sleep Mode:	<100uA
Current Display Accuracy:	0.01-10.00A ±60mA 10.00-35.00A ±3%
Voltage Display Accuracy:	5.4-10V <80mV 10-20V <120mV 20-35V <160mV
Capacity Display Accuracy:	+-3%
Weight:	879g
Dimensions:	136.6 x 104.8 x 107mm
