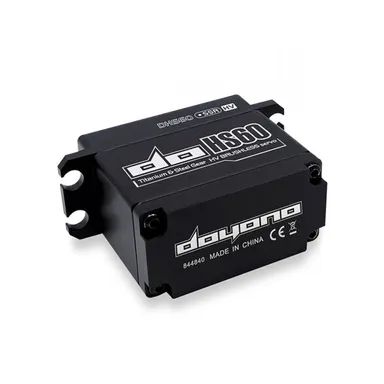

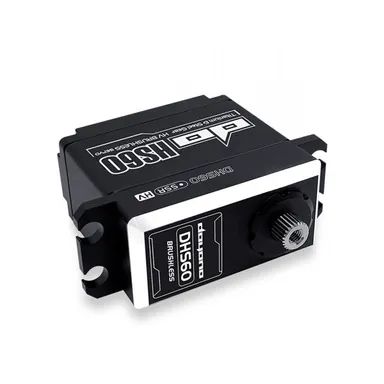

Doyono Brushless Servo HV CNC Aluminium case 60.0kg/0.068sec @8.4V

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 60kgcm for brushless motors has a titanium steel gear and a weatherproof aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure. Features:

• High Voltage Servo
• Gears made of durable titanium and steel
• Lightweight aluminum housing
• Very weather resistant
• Operating Voltage: 6.0-8.4V
• 2µs dead band, 1520µs neutral point
• 180mm connection wire length

Technical Specifications:

Voltage:	6.0V	8.4V
Speed:	0.096sec	0.068sec
Torque:	46.0kgcm	60.0kgcm
Motor:	Brushless
Gear:	Titanium / Steel
Bearing:	yes, dual
Max. Travel:	~100° (bei 800: 2200µs)
Quiescent Current:	60mA @6.0V
Rated Current:	0.2A @6.0V
Blocking Current:	3.6A @6.0V
Dimensions:	40.7x20.5x38.9mm
Weight:	84.0g
Output Gear:	25T
